Japan Epson RTC module

Epson has a variety of real-time clock modules (RTC) with built-in XTAL that save power, provide excellent accuracy and simplify system design. Thanks to a rich set of optional features such as alarms and timestamps, RTC can cover multiple other tasks besides timekeeping. IoT (Internet of things), the Internet of Things has opened up a large number of new applications and created more desires for monitoring or control functions, but power consumption also increases with the increase in functions. If a device is always working and requires ultra-low power consumption. You can consider using RTC, because the RTC real-time clock is always working. "Tang Electronics" has the following Panasonic battery and supporting product supply: CR/BR series-cylindrical manganese dioxide lithium battery, rechargeable nickel metal hydride battery (cylindrical series), CR/BR series-clip lithium battery (welded electrode, lead wire, etc.), battery holder (can be customized according to model). (The battery is the original Panasonic product, and the electrode, lead wire and socket products are provided by "Tang Electronics" for customers to purchase and use, so as to serve customers to the maximum extent. For more details, please consult "Tang Electronics").

Classification:

All Products

Specification:

  • Product Description
  • Selection Reference
    • Commodity name: Japan Epson RTC module

    Epson has a variety of real-time clock modules (RTC) with built-in XTAL that save power, provide excellent accuracy and simplify system design. Thanks to a rich set of optional features such as alarms and timestamps, RTC can cover multiple other tasks besides timekeeping. IoT (Internet of things), the Internet of Things has opened up a large number of new applications and created more desires for monitoring or control functions, but power consumption also increases with the increase in functions. If a device is always working and requires ultra-low power consumption. You can consider using RTC, because the RTC real-time clock is always working. "Tang Electronics" has the following Panasonic battery and supporting product supply: CR/BR series-cylindrical manganese dioxide lithium battery, rechargeable nickel metal hydride battery (cylindrical series), CR/BR series-clip lithium battery (welded electrode, lead wire, etc.), battery holder (can be customized according to model). <strong> (The battery is the original Panasonic product, and the electrode, lead wire and socket products are provided by "Tang Electronics" for customers to purchase and use, so as to serve customers to the maximum extent. For more details, please consult "Tang Electronics"). </strong>

    RTC real-time clock module

    model External dimensions
    [mm]    		 Features Supply voltage
    [V]    		 Frequency tolerance
    [x10-6]    		 Standby current
    [µA]    		 Built-in power switching Time stamp memory Brief Sheet
    specification book download
    RX8111CE 3.2 x 2.5 x 1.0 I2C-Bus,
    Low Power，
    8 time stamps    		 1.1 to 5.5 A : ±11.5 / +25°C

    B : ±23.0 / +25°C    		 0.1 √ √ √
    RX8130CE 3.2 x 2.5 x 1.0 I2C-Bus    1.1 to 5.5 B : 5±23
    / +25°C    		 0.3 √   √
    RX8900CE 3.2 x 2.5 x 1.0 I2C-Bus
    Built-in
    DTCXO，
    High
    Stability    		 1.6 to 5.5 UA : ±3.4
    / -40 to +85°C
    UB : ±5.0
    / -40 to +85°C
    UC : ±5.0
    / -30 to +70°C    		 0.7 √
    RX8010SJ 7.0 x 6.0 x 2.65 Low   current
    consumption，
    Built-in   SRAM    		 1.1 to 5.5 B : 5±23
    / +25°C    		 0.16     √
    RX-8025SA 10.1 x 7.4 x 3.3 I2C-Bus
    High   Stability    		 1.15 to 5.5 AA : 5±5.0
    / +25°C
    AC : 0±5.0
    / +25°C    		 0.48

    RX8111CE module

    Can P2P

    RX-8025SA

    		 10.2 x 7.3 x 2.0 I2C-Bus
    Low   current
    consumption    		 1.6 to 5.5  0±5.0
    / +25°C    		 0.1
    RX-8025T UB 10.1 x 7.4 x 3.2 I2C-Bus is a high-precision and high-stability      real-time clock chip
    launched      to meet the special high-standard requirements of China Power Grid in smart grids.
         		 1.6 to 5.5 ±5 / +25°C 0.22     √
    RX-8025T UC 10.1 x 7.4 x 3.2 I2C-Bus is a high-precision and high-stability      real-time clock chip
    launched      to meet the special high-standard requirements of China Power Grid in smart grids.
         		 1.6 to 5.5 ±5 / +25°C 0.22     √

    如需要了解EPSON的RTC时钟芯片和Panasonic电池产品的组合应用，点击如下链接查看：



    1、EPSON爱普生RTC+松下Panasonic电池的组合



    2、EPSON爱普生高精度、低功耗RTC RX8901CE+松下Panasonic高性能电池CR2032的组合应用



    3、EPSON爱普生RTC RX8025T+松下Panasonic高性能电池CR2032的组合应用



    4、EPSON爱普生nA级RTC RX8111CE+松下Panasonic高性能电池CR2032的组合应用



    5、EPSON爱普生RTC RA8900CE/RA8000CE+松下Panasonic高性能电池BR2330A的组合



    6、松下电池的分类和型号特点（一）



    7、车载领域的“小巨人”——松下纽扣电池



    8、明星产品 | 万物互联时代的节能卫士：RTC模块中的松下纽扣电池



    9、利用爱普生的RTC实时时钟模块+Panasonic电池实现系统级的低功耗



    10、电池安全使用的注意事项-以松下Panasonic电池为例



    11、向您介绍一颗松下纽扣电池CR1220，“唐辉电子”常备有现货，欢迎您下单！



    12、向您介绍一颗松下电池BR1225，“唐辉电子”常备有现货，欢迎您下单！



    13、RTC时钟芯片+电池的应用案例（一）



    14、“耐高温！”RTC时钟芯片+电池的应用案例（二）

  •  01

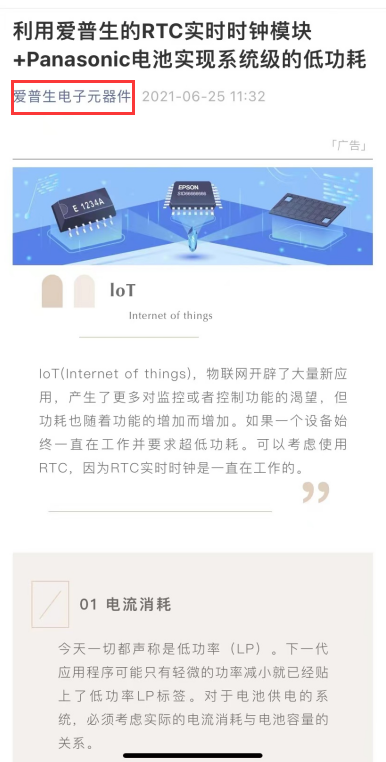

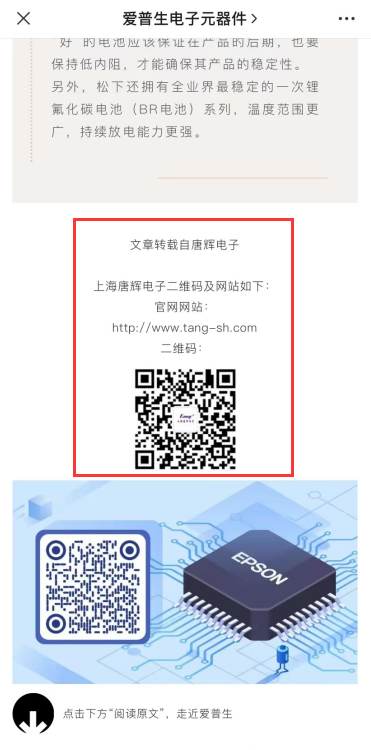

    An article by "Tang Electronics" on RTC + Panasonic batteries was reprinted on the official WeChat account of Epson Electronic Components.

    The original link is as follows:

    https://mp.weixin.qq.com/s/GhLlgf1Kmw8U1plE-0s90A

    02

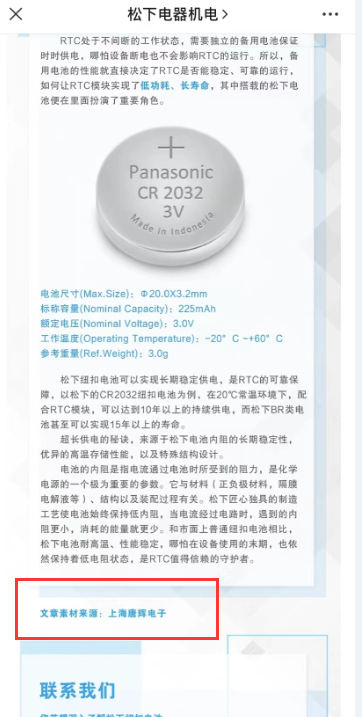

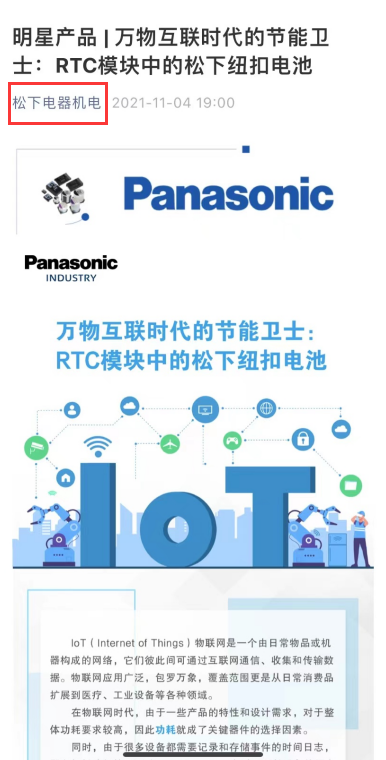

    An article by "Tang Electronics" on RTC + Panasonic batteries was reposted by Panasonic Electrical and Mechanical's official WeChat account.

    The original link is as follows:

    https://mp.weixin.qq.com/s/Hx-jAC0Gny0v9bpfdJvt8A
